| موصل: | 8 منافذ RJ45 | منفذ بصري: | 2 × 100Base-FX (SFP، SC، FC، ST اختياري) |
|---|---|---|---|
| منفذ إيثرنت: | RJ45 الميناء 1 ~ الميناء 8 | درجة حرارة العمل: | -40 درجة مئوية إلى 80 درجة مئوية (-40 درجة فهرنهايت إلى 176 درجة فهرنهايت) |
| مدخل الطاقة: | 12 ~ 58VDC ، الطاقة الزائدة (كتلة طرفية ذات 6 سنون) | الأبعاد (WxDxH): | 150 × 115 × 50 ملم |
| الوزن: | 0.6 كجم | الغلاف: | حالة الألومنيوم |
| إبراز: | 2 Fiber Ports Ethernet POE Switch,Din Rail Ethernet POE Switch,Fiber Ports Ethernet POE Switch,Din Rail Ethernet POE Switch,Fiber Ports Ethernet POE Switch |
||

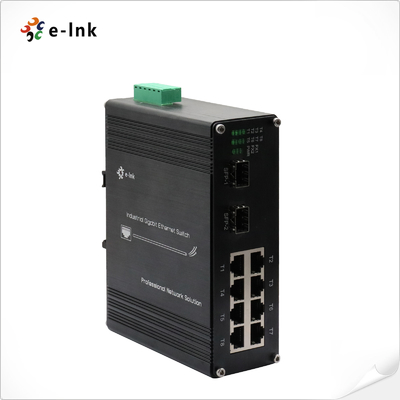

Industrial 8-port 10/100Base-T + 2-port 100BASE-FX Ethernet Switch
Overview
The LNK-IMC208 Series is a hardened industrial Ethernet switch that delivers robust network
connectivity for demanding environments. Featuring 8×10/100Base-TX copper ports and
8×100Base-FX fiber ports, this high-density switch provides flexible deployment options for
both copper and fiber networks.
Key features include:
- RJ45 copper ports supporting 10/100Mbps auto-negotiation, full/half-duplex operation, and
auto MDI/MDI-X crossover
- Fiber optic ports compatible with single-mode or multi-mode fiber (1 or 2 core) for extended
reach up to 2km (multi-mode) or 20km/40km (single-mode)
- Industrial-grade reliability with wide operating temperature range and hardened construction
Designed for mission-critical applications, the LNK-IMC208 is ideal for:
- Industrial automation control systems
- Large-scale IP surveillance networks
- Distributed wireless access point deployments
- Remote site connectivity solutions
With its high port density and dual-media connectivity, this switch offers exceptional flexibility for
creating resilient network infrastructures in harsh environments. The ruggedized design ensures
reliable operation while the fiber optic ports provide electrical isolation and noise immunity for stable
long-distance communications.
Features
► SFP, SC, FC, ST Optional
► Supports 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant Power Inputs
► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
► 8 10/100Base-TX + 2 100Base-FX
►10/100Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

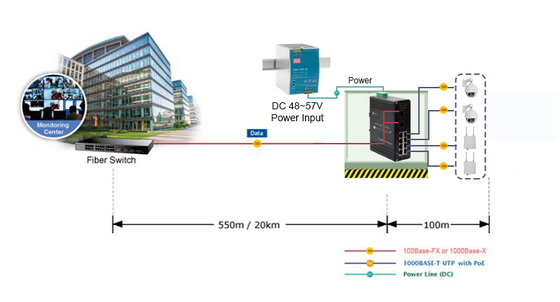

Application
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE802.3x Flow Control | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| Packet Buffer Memory: | 512K bits |
| Processing Type: | Store-and-Forward |
| Address Table Size: | 1024 MAC Addresses |
| Interface | |
| Connector: | 8 x RJ45 |
| Optical Port: | 2 x 100Base-FX (SFP, SC, FC, ST Optional) |
| Ethernet Port | RJ45 Port 1 ~ Port 8 |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |

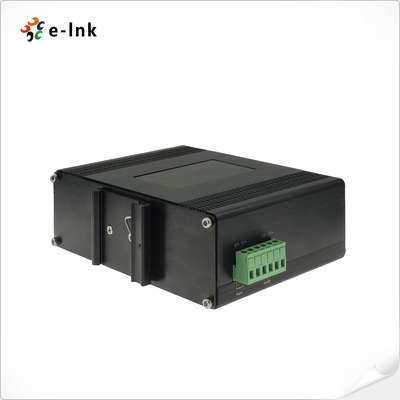

| Input Power: | 12~58VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 5W Max. |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |

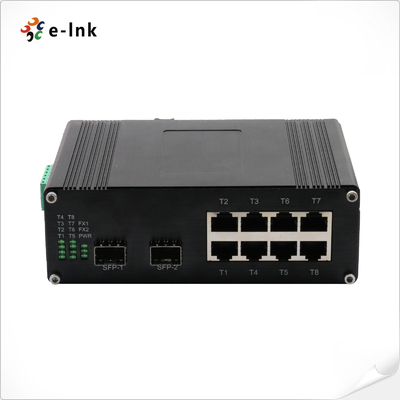

| LED Indicators: | |
| Power: | Power1, Power2 Status |
| Ethernet (Per Port): | Link/Activity |
| Fiber: | FX1, FX2 |
| Dimensions (WxDxH): | 150 x 115 x50 mm |
| Weight: | 0.6Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Regulatory Approvals | |
| ISO9001 | |
| EN55022:2010+AC: 2011, Class A | |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |
| EN 61000-3-3: 2013 | |
| EN55024:2010 | |
| IEC 61000-4-2: 2008 (ESD) | |
| IEC 61000-4-3: 2010 (RS) | |
| IEC 61000-4-4: 2012 (EFT) | |
| IEC 61000-4-5: 2014 (Surge) | |
| IEC 61000-4-6: 2013 (CS) | |
| IEC 61000-4-8: 2009 (PFMF) | |
Ordering Information
| Model | Description |
| LNK-IMC208 | Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Multimode, Dual Fiber, SC, 2KM |
| LNK-IMC208-20 | Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Dual Fiber, SC, 20KM |
| LNK-IMC208S-20 | Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, SC, 20KM |
| LNK-IMC208F-20 | Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, FC, 20KM |
| LNK-IMC208-SFP | Industrial 8-port 10/100BASE-T + 2-port 100BASE SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
