E-لينك الصين التكنولوجيا المحدودة.
|
تفاصيل المنتج:
شروط الدفع والشحن:
|
| Connector: | 5 x RJ45 (4-Port 802.3at PoE Out) | منفذ بصري: | 2 x SFP 1000Base-X أو 100Base-FX (الكشف التلقائي) |
|---|---|---|---|
| درجة حرارة التشغيل: | -40 درجة مئوية إلى 80 درجة مئوية (-40 درجة فهرنهايت إلى 176 درجة فهرنهايت) | PoE Budget: | Up to 360-watt PoE budget |
| Dimensions (LxWxH): | 95 x 88 x 46mm | Weight: | 300g |
| غلاف: | حالة الألومنيوم | خيارات التثبيت: | DIN- السكك الحديدية |
| إبراز: | 802.3bt Industrial POE Gigabit Ethernet Switch,Industrial DIN-rail Mountable POE Switch,90W Industrial POE Gigabit Ethernet Switch,Industrial DIN-rail Mountable POE Switch,90W Industrial POE Gigabit Ethernet Switch |
||
Overview

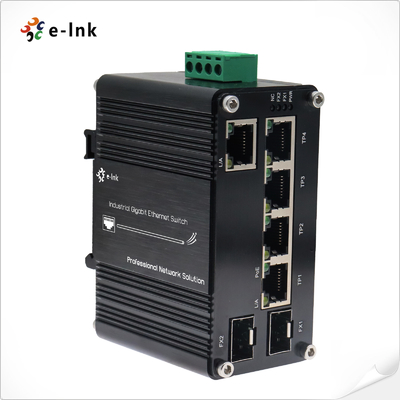

The E-link LNK-IMC205GHP-SFP Series is a high-power industrial PoE++ switch designed to meet the
growing demand for power-hungry network devices. Featuring 4×10/100/1000BASE-T PoE++ ports
(IEEE 802.3bt, up to 90W/port), 1×Gigabit Ethernet port, and 2×100/1000M SFP fiber slots, this compact
yet powerful switch delivers both high-speed data and ultra-high power over standard Ethernet cabling.
Key Features
✔ 90W PoE++ per port(IEEE 802.3bt) – 3× more power than standard PoE+ (802.3at)
✔ PoH (Power over HDBaseT) support – Enables up to 95W power delivery over Cat5e/6 cables
✔ Dual-rate SFP slots – Supports multi/single-mode fiber for long-distance or noise-immune connections
✔ Industrial-hardened design – IP40-rated, DIN-rail mountable, with high EFT/ESD protection
✔ Wide operating temperature – Built for harsh environments (factory, outdoor, utility, etc.)
Ideal for High-Power Applications
- PTZ speed dome cameras (PoE++)
- Thin clients & AIO touch PCs
- Digital signage & POS/kiosk systems
- Industrial IoT & automation
- Oil/gas, mining, water/wastewater networks
With its unmatched power capacity and industrial reliability, the LNK-IMC205GHP-SFP is the ultimate
solution for deploying high-power devices in mission-critical and extreme-condition environments.
---
✅ Why Choose This Switch?
- Eliminates separate power supplies – Simplifies installation
- Future-proof for high-power PDs – Supports next-gen devices
- Fiber-ready – Extends network reach with SFP modules
- Ruggedized for industry – Ensures 24/7 operation in tough conditions
Perfect for surveillance, automation, and outdoor networks where high power + industrial durability are
essential.
Features
► Up to 4 ports of IEEE 802.3bt/at/af devices powered
► Up to 360-watt PoE budget
► Supports PoE power up to 95 watts for each PoE port

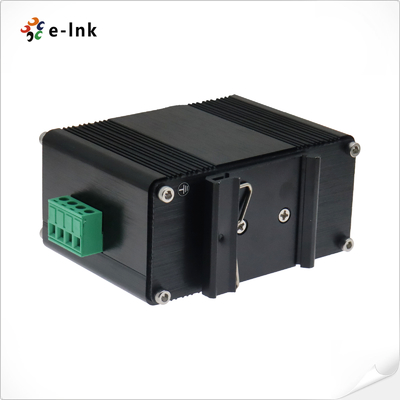

► Supports DIN-Rail installation
► Compact fanless design avoids overheating
► IP40 rugged high-strength metal case
► 48~57V DC redundant power with reverse polarity protection
► -40°C to 80°C (-40°F to 176°F) operating temperature

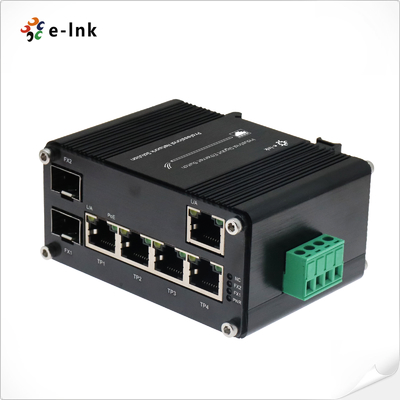

► 5 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
► 2 SFP slots, supporting 1000BASE-X and 100BASE-FX transceiver in dual modes
► Complies with IEEE 802.3bt PoE Standard

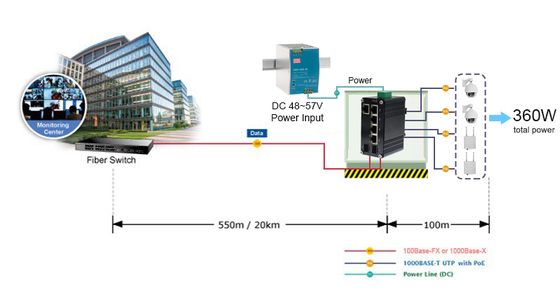

Application
Technical Indexes
| Ethernet | |
| Standards: | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet | |
| IEEE 802.3ab Gigabit Ethernet | |
| IEEE 802.3x Full-Duplex Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE 802.3bt 4-pair Power over Ethernet | |
| IEEE 802.3at Power over Ethernet Plus PSE | |
| IEEE 802.3af Power over Ethernet Plus | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer: | 2Mbits |
| Packet Length: | 10Kbytes |
| MAC Address Table: | 4K |
| Switch Fabric: | 14Gbps/non-blocking |
| Exchange Property |
Backplane bandwidth: 14Gbps; Packet forwarding rate: 14.88Mpps |
| Connector: | 4 ports with 802.3at PoE+ injector function (Ports 1 to 4) |
| Network Cables |
Twisted-pair: 10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m 100BASE-TX: 2-pair UTP Cat. 5, up to 100m 1000BASE-T: 4-pair STP Cat 5 up to 100m
Fiber-optic Cable 1000BASE-SX: 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km. 1000BASE-LX: 9/125μm single-mode cable, providing long distance of 2/10/20/40/80/120km (depending on SFP module) 100BASE-FX: 50/125μm or 62.5/125μm multi-mode fiber cable for up to 2km (depending on SFP module) 9/125μm single-mode cable for 20/40/60/120km (vary on SFP module) |
| Interface | |
| Connector: | 5 x RJ45 (4-Port 802.3at PoE Out) |
| Optical Port: | 2 x SFP 1000Base-X or 100Base-FX (auto detection) |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at/bt |
| Port: | RJ45 |
| Power Pin Assignment: |
Pair 1 End-span: 1/2(-), 3/6(+) Pair 2 Mid-span: 4/5(+), 7/8(-) 802.3bt/PoH: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Budget: | Up to 360-watt PoE budget |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 48~57VDC (Terminal Block) |
| Power Consumption: | 382W Max. (PoE in use) |
| <5W (PoE not in use) | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Dimensions (LxWxH): | 95 x 88 x 46mm |
| Weight: | 300g |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail |
| LED Indicators: | |
| PWR: | Power |
| L/A: | Link/Activity |
| PoE: | PoE Status |
| FX1/FX2: | SFP Fiber Link Status |
| Regulatory Approvals | |
| ISO9001, CE, FCC, RoHS | |
| EN55022:2010+AC: 2011, Class A | |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |
| EN 61000-3-3: 2013 | |
| EN55032:2017 | |
| IEC 61000-4-2: 2008 (ESD) | |
| IEC 61000-4-3: 2010 (RS) | |
| IEC 61000-4-4: 2012 (EFT) | |
| IEC 61000-4-5: 2014 (Surge) | |
| IEC 61000-4-6: 2013 (CS) | |
| IEC 61000-4-8: 2009 (PFMF) | |
Ordering Information
| Model | Description |
| LNK-IMC205GHP-SFP | Industrial 4-Port 10/100/1000T 802.3bt 90W PoE + 1-Port 10/100/1000T + 2-Port 100/1000X SFP Gigabit Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; |
| Power Options | ► 480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately |
