Industrial 1-In 4-Out Gigabit PoE Extender, IEEE 802.3at PoE+, 200m Extension

Industrial 1-Port 802.3at PoE+ to 4-Port 802.3af/at Gigabit PoE Extender

Industrial PoE Extender Overview

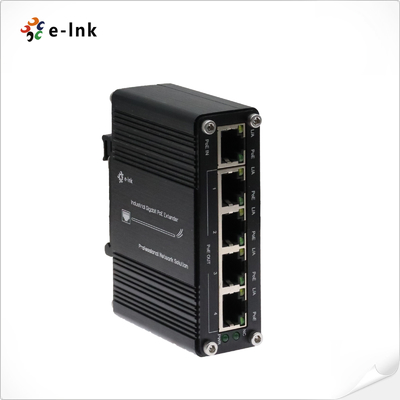

The LNK-IPE104-30 is an industrial-grade, 1-input, 4-output PoE extender designed for

point- to-multipoint PoE applications . It draws up to 30W of power from one 802.3at PoE+ input port

and provides a total of 25W of PoE power to four PoE output ports . This device extends

the Gigabit Ethernet data and PoE power range from the standard 100 meters to 200 meters ,

and can simultaneously power up to four powered devices (PDs) such as network cameras

and wireless access points. Requiring no external power supply, the LNK-IPE104-30 supports

plug-and-play operation, easily expanding the number of PoE ports and reducing cabling costs.

It is suitable for a variety of scenarios, including security surveillance, wireless network coverage,

and industrial automation.

Industrial PoE Extender Features

► 10/100/1000Mbps Ethernet Ports

► 1 RJ-45 PoE/PD + 4 RJ-45 PoE/PSE

► IP40-rated aluminum case

► Can be Powered by IEEE 802.3at 30W Power Sourcing Equipment

► Can Power IEEE 802.3af PoE, IEEE 802.3at Powered Devices

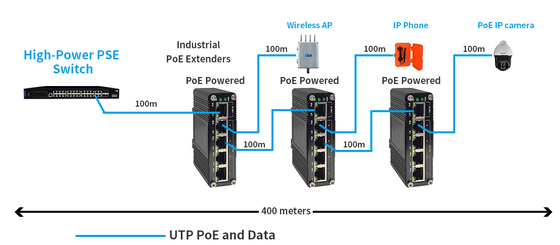

► Extends an additional 100m for PoE network. Daisy chain support connection up

to 3 PoE Extenders for a total PoE+ network extension of 400m (1,312 ft.)

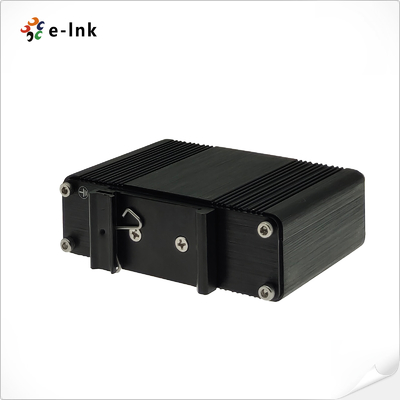

► Support DIN-Rail & Wall-mount installation

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

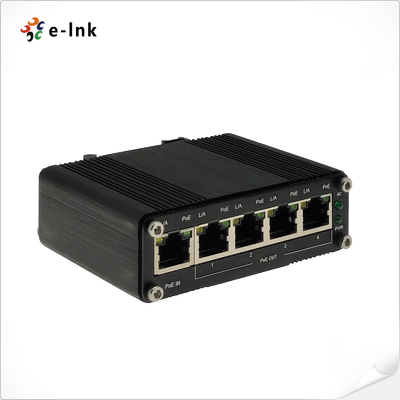

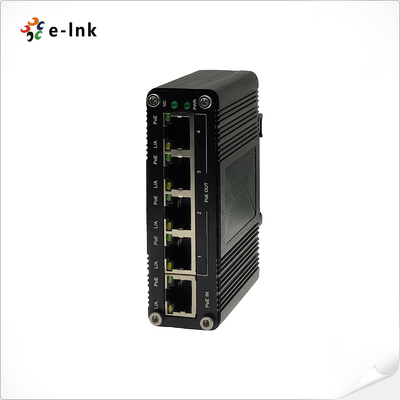

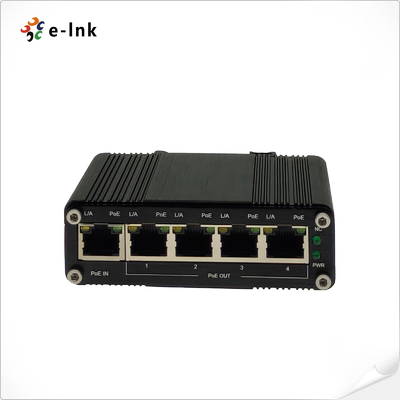

Industrial PoE Extender Panel

Industrial PoE Extender Technical Indexes

Industrial PoE Extender Ordering Information
