Industrial Gigabit Media Converter PoE+ 30W DIN Rail Mount

Mini Industrial 100/1000BASE-X to 10/100/1000BASE-T 30W PoE+ Media Converter

Mini Industrial Gigabit Media Converter Overview

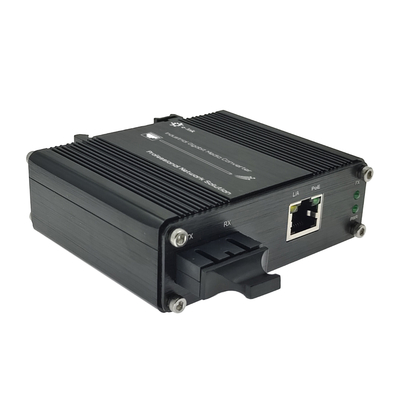

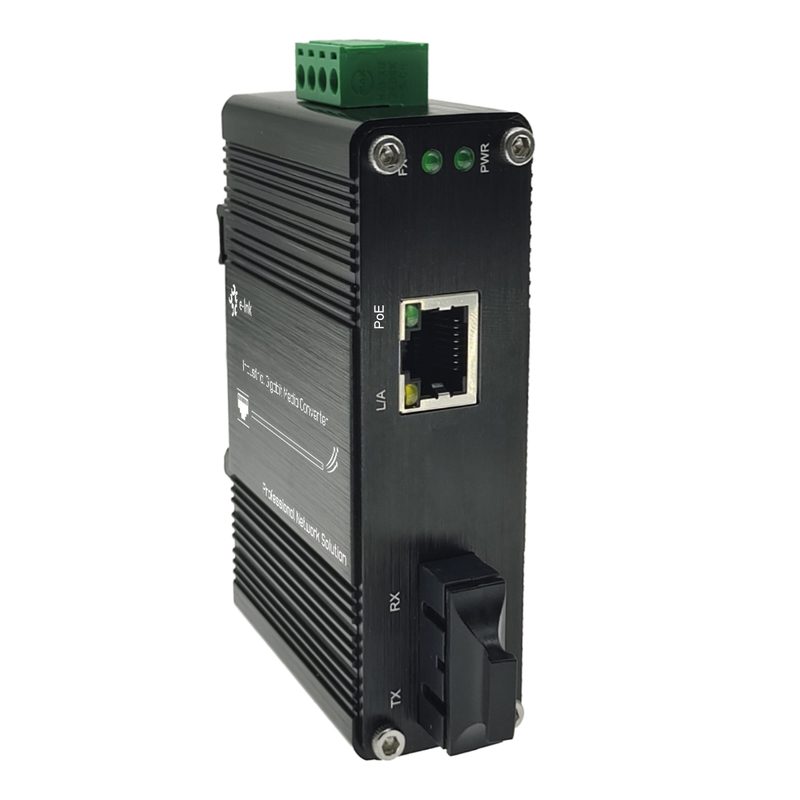

The LNK-IMC3012P Series is an industrial-grade Gigabit media converter that bridges

10/100/1000BASE-T copper Ethernet and 1000BASE-X fiber optic networks. The device features

 IEEE 802.3at PoE+ support (30W output) and is able to deliver both data and power over

a single cable to connected devices such as IP cameras, wireless APs and industrial sensors.

Engineered to withstand challenging conditions, its robust aluminium housing and operating range

of -40°C to 75°C guarantee reliable performance in industrial automation, smart transportation,

and outdoor surveillance. This product is an ideal solution for extending high-speed networks

in demanding conditions. It features DIN-rail or wall-mount installation, auto-negotiation (half/full duplex),

and a fanless design.

Mini Industrial Gigabit Media Converter Features

►1 × 10/100/1000BASE-T RJ45 port , supporting automatic MDI/MDI-X switching

►1×SC optical port , supports 100Base-FX or 1000Base-X dual-mode automatic detection

►Supports IEEE 802.3af PoE (15.4W) and IEEE 802.3at PoE+ (30W)**

►Full/half duplex self-adaptation and support for automatic negotiation to ensure network stability

►Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE) standard to reduce power consumption

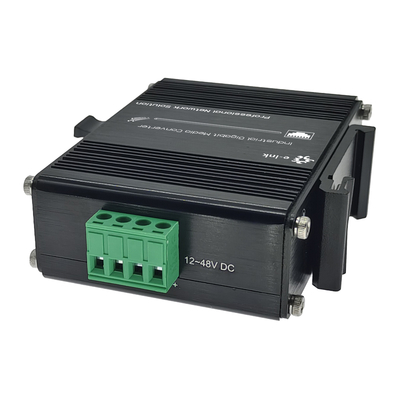

►12~48VDC terminal power input , suitable for various industrial power supply environments

►Supports DIN rail and wall mounting for flexible deployment

►Industrial grade wide temperature design -40°C to 75°C, suitable for harsh environments

Mini Industrial Gigabit Media Converter Technical Indexes

Mini Industrial Media Converter Ordering Information

Mini Industrial Media Converter Application

After-Sales and Warranty Policy

It is composed of online customer service and telephone customer service, providing product consultation, remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure by technicians and man-made damage caused by non-natural disasters, the purchaser can directly go to the purchasing point to replace the same type of products.Or a product of comparable performance. If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.

[The following circumstances do not fall within the scope of replacement and free maintenance]

1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
