Industrial 24V PoE Splitter Plug Play Installation for IP Cameras APs

Industrial 10/100/1000Mbps 802.3bt PoE+ +Splitter Output Voltage 24VDC

Industrial Gigabit PoE Splitter Overview

The LNK-INS901-24V Series is an industrial-grade Gigabit Power over Ethernet (PoE) splitter

that delivers both data (via RJ45) and 24V power (via screw terminals) to non-PoE devices.

This product is compatible with IEEE 802.3af/at/bt PoE switches, thus eliminating the need

for separate power wiring while maintaining full Gigabit speeds up to 100 metres.

This robust splitter is designed for tool-free, plug-and-play installation, ensuring seamless

integration with LNK-INJ-48-95W PoE injectors. It is ideally suited for use with IP cameras,

wireless access points, and industrial IoT devices in challenging environments.

Industrial Gigabit PoE Splitter Features

• Separates power and data from a PoE input source

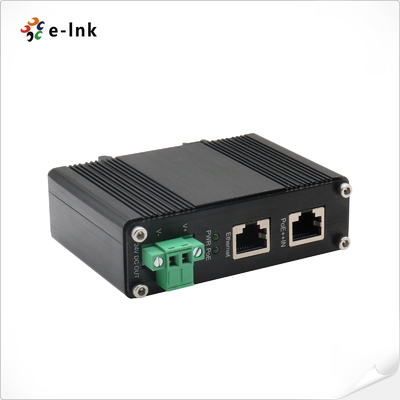

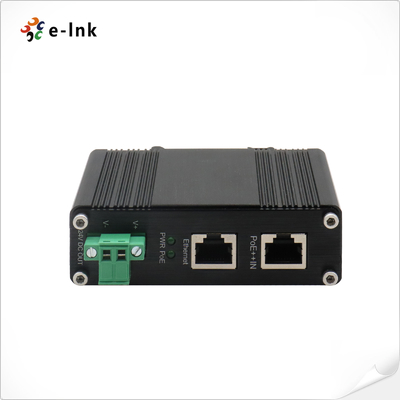

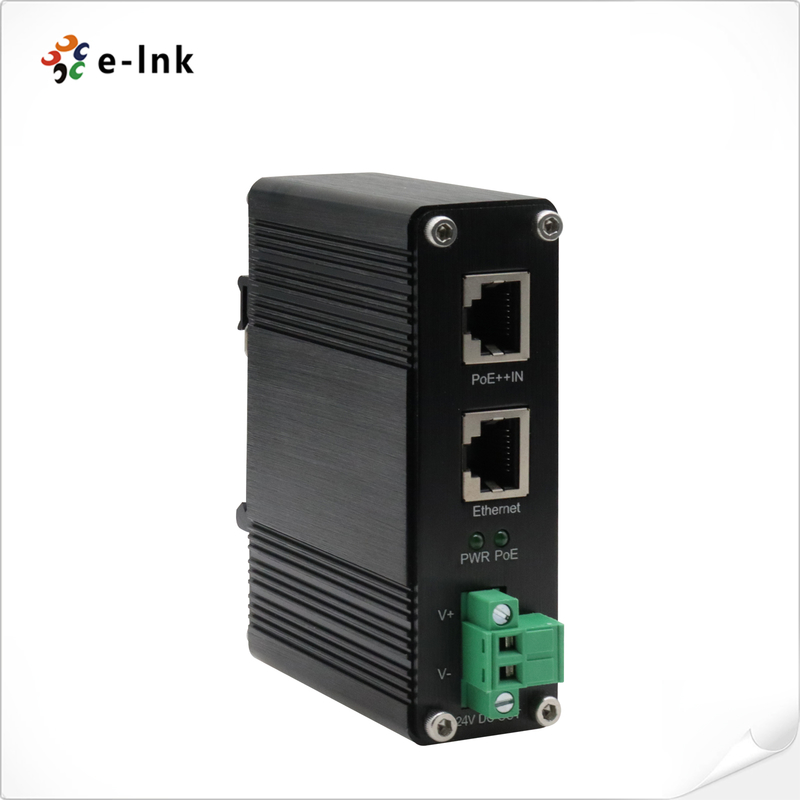

• 1× RJ45 PoE port (Data & Power In) and 1× RJ45 port (Data Out)

• 1× 24V DC output via 2-pin terminal block

• Compliant with IEEE 802.3af/at/bt (PoE++) standards

• Supports 10/100/1000Base-T Ethernet

• Transmission distance up to 100 meters

• Short-circuit protection for power output

• IP40-rated rugged metal housing , fanless design for reliable operation

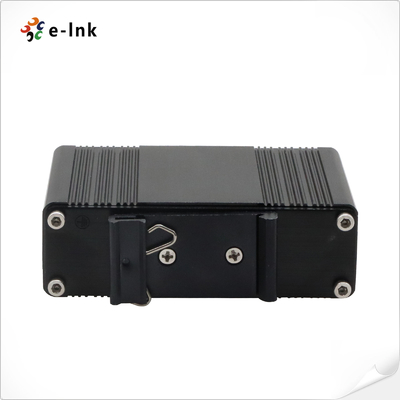

• Supports DIN-rail and wall-mount installation

• Equipped with LED indicators for PoE and diagnostics

• Wide operating temperature range: -40°C to +80°C (-40°F to +176°F)

Industrial Gigabit PoE Splitter Technical Indexes
