تفاصيل المنتج:
شروط الدفع والشحن:
|
| الموصل: | 8 X RJ45 | منفذ بصري: | 2 × 1000Base-FX (SFP ، SC ، FC ، ST اختياري) |
|---|---|---|---|
| قوة الإدخال: | 12 ~ 58VDC ، قوة زائدة (كتلة طرفية 6 أسنان) | استهلاك الطاقة: | 5W ماكس |
| الأبعاد (WXDXH): | 150 × 115 × 50 مم | وزن: | 0.6 كجم |
| درجة حرارة التشغيل: | -40 درجة مئوية إلى 80 درجة مئوية (-40 درجة فهرنهايت إلى 176 درجة فهرنهايت) | غلاف: | حالة الألومنيوم |
| إبراز: | 8 port industrial Ethernet switch,rugged gigabit Ethernet switch,hardened fiber industrial switch,rugged gigabit Ethernet switch,hardened fiber industrial switch |
||

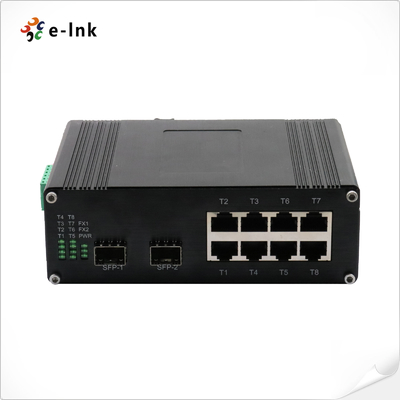

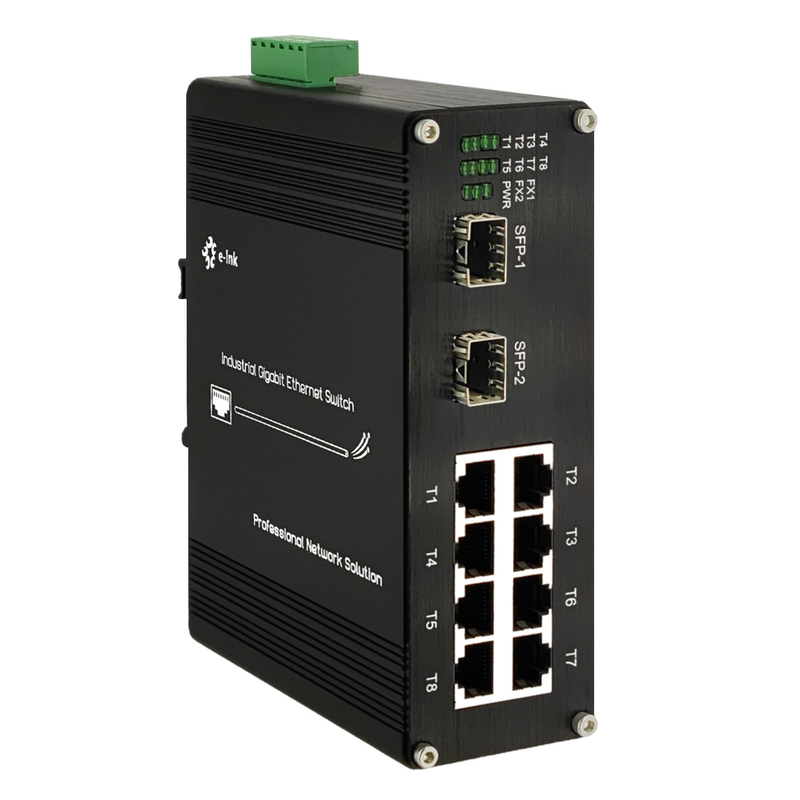

Industrial Ethernet Switch Overview
The LNK-IMC208G Series is an industrial-grade hardened Ethernet switch featuring
8×10/100/1000Base-TX RJ45 ports and 2×1000Base-FX fiber optic ports. Designed
for harsh environments, it delivers reliable connectivity with auto-negotiation, auto MDI/MDI-X,
and support for both single-mode and multi-mode fiber. Its ruggedized design ensures stable operation
in industrial applications, making it ideal for connecting IP cameras, wireless access points,
and other network devices across remote locations. With robust construction
and plug-and-play installation, this switch provides seamless integration for surveillance systems,
industrial automation, and outdoor network deployments.
Industrial Ethernet Switch Features
► Features 8 × 10/100/1000Base-TX RJ45 ports and 2 × 1000Base-FX fiber ports for versatile connectivity.
► RJ45 ports support 10/100/1000Mbps full/half-duplex, auto-negotiation, and Auto MDI/MDIX.
► Compatible with multiple fiber transceiver types: SFP, SC, FC, and ST (optional).
► Supports IEEE 802.3x flow control and IEEE 802.3az Energy Efficient Ethernet (EEE)
for optimized performance and energy savings.
► Equipped with redundant power inputs to ensure continuous operation and system reliability.
► Flexible installation options with wall-mount and DIN-rail support.
► Designed for harsh environments with a wide operating temperature range of -40°C to 80°C (-40°F to 176°F).
Industrial Ethernet Switch Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX/FX |
|
|
IEEE802.3x Flow Control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3ab 1000BASE-T |
|
|
IEEE802.3z 1000BASE-X |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Memory: |
2.75M bits |
|
Processing Type: |
Store-and-Forward |
|
Max Packet Length: |
9K Bytes Jumbo Frame |
|
Address Table Size: |
4K MAC Addresses |
|
Interface |
|
|
Connector: |
8 x RJ45 |
|
Optical Port: |
2 x 1000Base-FX (SFP, SC, FC, ST Optional) |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~58VDC, Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
5W Max. |
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
Power: |
Power1, Power2 Status |
|
Ethernet (Per Port): |
Link/Activity |
|
Fiber: |
FX1, FX2 |
|
Dimensions (WxDxH): |
150 x 115 x 50 mm |
|
Weight: |
0.6Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55024:2010 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
Industrial Ethernet Switch Ordering Information
|
Model |
Description |
|
LNK-IMC208G |
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 2-port 1000BASE-X Fiber, Multimode, Dual Fiber, SC, 550m |
|
LNK-IMC208G-20 |
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 2-port 1000BASE-X Fiber, Single Mode, Dual Fiber, SC, 20KM |
|
LNK-IMC208GS-20 |
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 2-port 1000BASE-X Fiber, Single Mode, Single Fiber, SC, 20KM |
|
LNK-IMC208GF-20 |
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 2-port 1000BASE-X Fiber, Single Mode, Single Fiber, FC, 20KM |
|
LNK-IMC208G-SFP |
Industrial 8-port 10/100/1000BASE-T + 2-port 1000BASE SFP Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
Industrial Ethernet Switch Application
