Hardened 2-Port Gigabit High Power PoE Injector for Industrial Use

Hardened 2-Port Gigabit High Power PoE Injector for Industrial Use

Overview

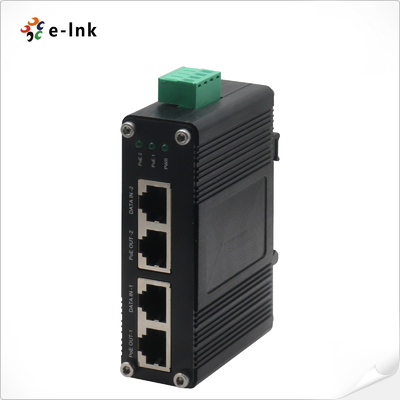

The LNK-INJ302 is a ruggedized 2-port Gigabit High Power PoE Injector designed to

connect IEEE 802.3af/at PoE devices, such as cameras and access points, to a non-PoE

LAN switch within a 100-meter range. Both the Ethernet port (for connecting to the switch)

and the PoE output port (for powering PoE devices) support 10/100/1000Base-T and comply

with IEEE 802.3ab and 802.3at standards. This injector provides a versatile power solution,

offering a wide input voltage range of 12-48VDC, making it ideal for high-availability industrial

applications.

Features

12~48VDC power supply input

2 RJ45 Ethernet data input ports + 2 RJ45 Power over Ethernet (PoE) output ports

(Data + Power)

Compliant with IEEE802.3at PoE+ Power Sourcing Equipment

Up to 60W PoE per port, with a total PoE output of less than 60W

Supports 10/100/1000Base-TX Ethernet speeds

Compatible with both DIN rail and wall-mount installation options

Includes multiple LED indicators for PoE status monitoring

Built for harsh environments with an operating temperature range of -40°C to 80°C (-40°F

to 176°F)

Technical Indexes

Ordering Information

Application
