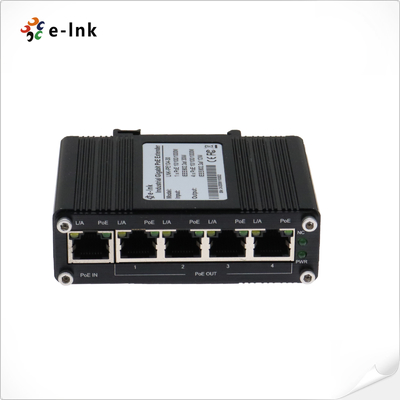

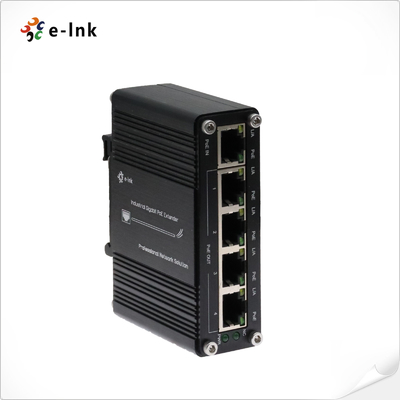

Industrial 1-Port PoE+ to 4-Port Gigabit Extender 30W IP40 DIN-Rail

Industrial 1-Port PoE+ to 4-Port Gigabit Extender 30W IP40 DIN-Rail

Overview

The LNK-IPE104-30 is a high-performance industrial PoE+ extender designed to extend

both data and power over Ethernet. With a 1-Port 802.3at PoE+ input, it can deliver up to

25W of PoE power across 4 output ports, making it ideal for point-to-multipoint PoE

applications. This device supports up to 200m of Ethernet range, and by daisy-chaining

multiple extenders, it can achieve a total PoE+ network extension of up to 400m. With a

robust IP40-rated aluminum case and wide operating temperature range of -40°C to 80°C,

it ensures reliable performance in harsh environments. The LNK-IPE104-30 offers flexible

installation options, supporting both DIN-Rail and wall-mount setups.

Features

1-Port 802.3at PoE+ Input: Provides up to 30W power for 4 PoE output ports.

4-Port 802.3af/at PoE Output: Delivers up to 25W PoE power across four devices

simultaneously.

Extended Ethernet Range: Extends PoE and Gigabit Ethernet up to 200 meters, with the

ability to daisy chain up to 3 extenders for a total of 400 meters.

High-Speed Ethernet Ports: Supports 10/100/1000Mbps Ethernet for fast and reliable data

transmission.

IP40-Rated Aluminum Housing: Durable, industrial-grade protection for harsh environments.

Wide Operating Temperature: Works in extreme temperatures from -40°C to 80°C

(-40°F to 176°F).

Flexible Installation: Supports DIN-Rail and wall-mount installations for versatile deployment.

No External Power Adapter: Powered directly by 802.3at PoE+ source, eliminating the need

for additional power sources.

Technical Indexes

Ordering Information

Application

Dimension
