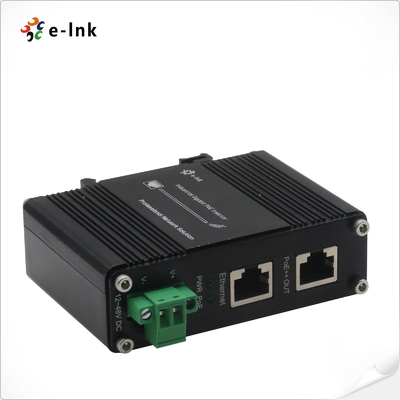

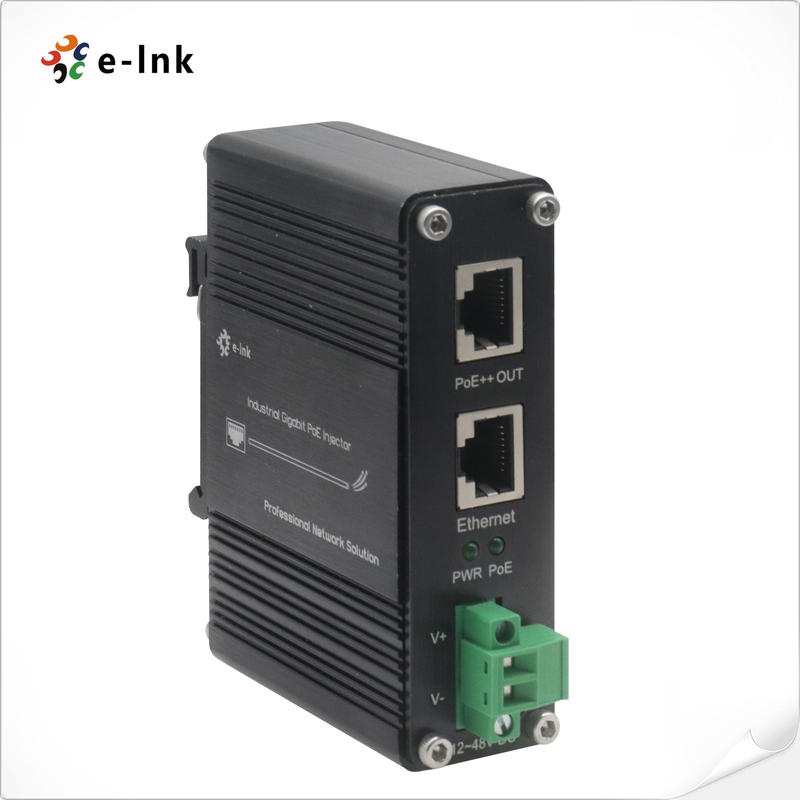

Industrial Gigabit PoE Injector with 95W Power and Wide DC Input Range

Ethernet

Standards:

IEEE802.3 10 BASE-T Ethernet

IEEE802.3u 100 BASE-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE802.3 x Flow Control

Processing Type:

Forward

Half-duplex, Full-duplex

Forward Filter Rate:

1,488,000pps (1000Mbps)

Cabling:

Twisted-pair cable up to 100 meters (328ft)

10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A

100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A

1000BASE-T: 4-pair UTP Cat. 5e, 6, 6A

Maximum Distance:

Cat5 UTP up to 100m

Connector:

2x RJ45

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

>200,000hrs

Electrical and Mechanical

Input Power:

12~48VDC (Terminal Block)

Power Consumption:

100W Max.

Power over Ethernet:

Standard:

IEEE 802.3bt 4-pair Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3af Power over Ethernet

Port:

RJ45

Power Pin Assignment

Data provide over pairs 1,2TX and 3,6RX

Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-)

PoE Budget:

Up to 95-watt PoE budget (48VDC)

Up to 95-watt PoE budget (24VDC)

Up to 60-watt PoE budget (12VDC)

LED Indicators:

Power:

Power Status

PoE:

PoE Status

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

IP40 Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Standard Accessories

Package Contents

LNK-INJ301-90

User's manual

Wall-mount kit

DIN-mount kit

Regulatory Approvals

ISO9001

FCC part 15, Class A

EN55022:2006+A1: 2007 Class A

Surge Protection:

RJ45: 1KV

Power: 500V

ESD: 4KV/8KV

Model

Description

LNK-INJ301-90

Hardened Gigabit 1-port Ethernet Input + 1-port 95W PoE++ Output Injector

with 12~48V DC wide range power input

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.
