تفاصيل المنتج:
شروط الدفع والشحن:
|
| موصل الفيديو: | DVI-D | واجهة الألياف الضوئية: | نموذج SFP - موصل LC |
|---|---|---|---|
| مزود الطاقة: | DC 5V/2A | تبديد السلطة: | ماكس 5W |
| البعد: | 94.5*73*26mm | درجة حرارة التشغيل: | -5 ℃ ~ +70 ℃ |
| إبراز: | Single Fiber DVI Extender,DVI to Fiber Converter 1080P,DVI Extender with EDID Management,DVI to Fiber Converter 1080P,DVI Extender with EDID Management |
||

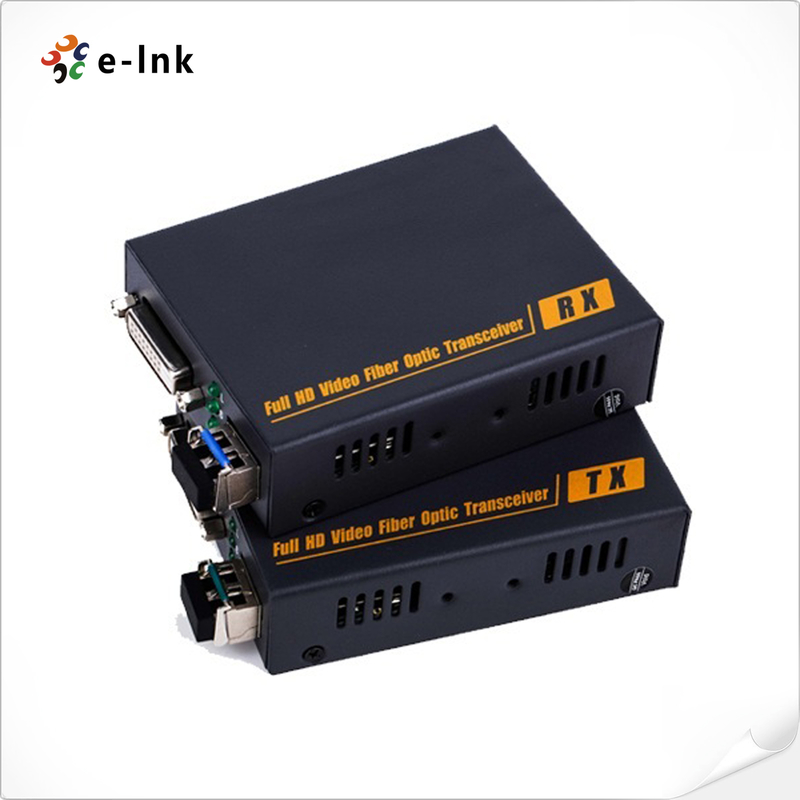

1080P DVI-D Fiber Optic Extender Overview
1080P DVI-D Fiber Optic Extender Features
► Transmits DVI video signals up to 2km–10km over a single fiber optic cable
► Supports resolutions up to 1920×1200 @ 60Hz for high-quality video output
► EDID copy function ensures compatibility with a wide range of display devices
► Fully compliant with DVI 1.0 and HDCP 1.2 standards
► Auto-detection for seamless matching between source and display devices
► Built-in automatic adjustment system delivers smooth, clear, and stable images
► Integrated ESD protection for enhanced system reliability
► Plug-and-play design for quick and simple installation
1080P DVI-D Fiber Optic Extender Technical Indexes
|
Parameter |
Description |
|
|
Video |
Standards |
DVI 1.0; HDCP 1.2 |
|
|
Maximum pixel clock |
165MHz |
|
|
Maximum data rate |
6.75Gbps |
|
|
Resolution range |
Up to 1920X1200@60Hz |
|
|
Connector |
DVI-D |
|
|
Impedance |
100Ω |
|
Optical fiber |
Interface |
SFP model – LC connector |
|
|
Fiber type |
Single-mode |
|
|
Wavelength |
Single-mode 1310nm(optional) |
|
|
Interface bandwidth |
10Gbps |
|
|
Transmission distance |
Single-mode fiber: standard 2km；maximum 10km |
|
Other |
Power supply |
The power adapter: DC 5V/2A |
|
|
Power dissipation |
MAX 5W |
|
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
94.5*73*26mm |
|
|
The warranty |
1 year free warranty |
1080P DVI-D Fiber Optic Extender Interfaces
1080P DVI-D Fiber Optic Extender Ordering Information
|
Model |
Description |
|
LNK-DVI-106 |
DVI-D to Fiber Converter: DVI-D Optical fiber transmission without compression /DVI - D, Multi-mode Fiber, 350 meters, LC(SFP), including 1 transmitter & 1 receiver, used by pairs |
|
LNK-DVI-S106-10 |
DVI-D to Fiber Converter: DVI-D Optical fiber transmission without compression /DVI - D, Single Mode, Single Fiber, 10KM, LC(SFP), including 1 Transmitter & 1 Receiver, used by pairs |
1080P DVI-D Fiber Optic Extender Application
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
