LNK-MV Series Multiplexer Save Cost Single Cable Video Data Transmission

LNK-MV Series Multiplexer Save Cost Single Cable Video Data Transmission
LNK-MV Series Multiplexer Save Cost Single Cable Video Data Transmission

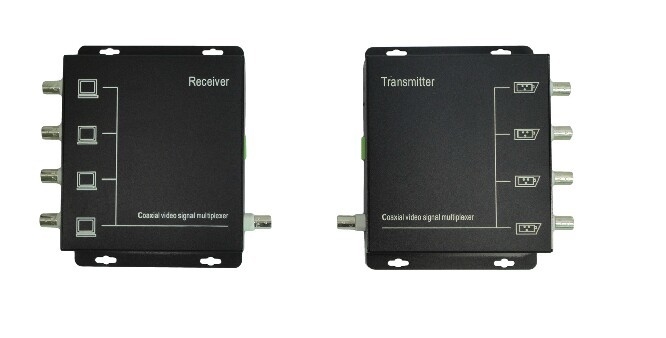

صورة كبيرة :  LNK-MV Series Multiplexer Save Cost Single Cable Video Data Transmission

تفاصيل المنتج:
مكان المنشأ: الصين
اسم العلامة التجارية: E-link
إصدار الشهادات: ISO9001, CE, RoHS, FCC
رقم الموديل: LNK-MV401
شروط الدفع والشحن:
الحد الأدنى لكمية: 1pcs
الأسعار: USD $69-89
تفاصيل التغليف: 4 قناة مقطع فيديو تعدد الإرسال الإرسال والتصدير
وقت التسليم: 2 ~ 7 أيام عمل
شروط الدفع: PayPal ، TT ، Western Union ، Moneygram ، Alipay ، T/T ، D/P ، D/A ، L/C.
القدرة على العرض: 2000pcs في الشهر
مفصلة وصف المنتج
واجهة: كتلة طرفية مزدوجة واجهة الفيديو: BNC
معدل باود: 300-57600BPS مزود الطاقة: DC12V / 1A
أبعاد: 158*124*39mm سعة إدخال الفيديو: 0.8-1.5VPP

4 Channel Video Multiplexer for 1 Coaxial Cable


4 Channel Video Multiplexer for 1 Coaxial Cable Overview


The E-link LNK-MV Series Video Multiplexer is an efficient and cost-effective solution for modern

surveillance systems. This innovative system combines a transmitter and receiver to bind 4 channels

of video signals from cameras along with RS485 reverse control data, transmitting them simultaneously

over a single coaxial cable. Eliminating the need for separate data cabling significantly reduces installation

time and material costs. This multiplexer is engineered for long-distance, stable transmission,

ensuring high-quality video and reliable PTZ control for your CCTV setup.


4 Channel Video Multiplexer for 1 Coaxial Cable Features


Supports 4 channel video signal transmission for cameras over a single coaxial cable

Compact design, ideal for projects with limited installation space

Enables long-distance transmission up to 500m

Utilizes Frequency Division Multiplexing (FDM) for real-time transmission of video and data with high-definition, zero-delay images

Requires only one coaxial cable, eliminating the need for additional cabling and reducing infrastructure costs by 25–30%

Ensures high-quality video performance with strong anti-interference capability

Easy installation with standard BNC harness connection


4 Channel Video Multiplexer for 1 Coaxial Cable Technical Indexes


Transmitter



VIDEO 1

VIDEO 2

VIDEO 3

VIDEO 4

VIDEO 5

VIDEO 6

Central Frequency



46MHZ

38MHZ

30MHZ

30MHZ

30MHZ

Signal Output Intensity

105db

105db

103db

102db

102db

102db

Video Input Impedance

75 Ohm (Unbalanced)

Video Input Amplitude

0.8-1.5VPP

Video Compatible Format

PAL, NTSC

Video Interface

BNC

2-62-2-

8MHZ

Power Supply

DC12V/1A

Receiver

Signal Output Amplitude

0.9-1.1VPP

Output Polarity

Positive

Output Impedance

75(Unbalanced)

Video Interface

BNC

Power Supply

DC12V/1A

RS485 Output Parameter(Switch with VIDEO 1)

Quantity of Node Supported

10

Baud Rate

300-57600bps

LNK-MV Series Multiplexer Save Cost Single Cable Video Data Transmission 0Interface

Double terminal block

Dimension

158*124*39mm


4 Channel Video Multiplexer for 1 Coaxial Cable Ordering Information


LNK-MV201

2-Ch video converter transmitter and receiver for camera by one coaxial cable

LNK-MV401

4-Ch video converter transmitter and receiver for camera by one coaxial cable


After-Sales and Warranty Policy


It is composed of online customer service and telephone customer service, providing product consultation,

remote technical supportmaintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure

by technicians and man-made damage caused by non-natural disasters, the purchaser can directly

go to the purchasing point to replace the same type of products.Or a product of comparable performance.

If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.


[The following circumstances do not fall within the scope of replacement and free maintenance]


1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
