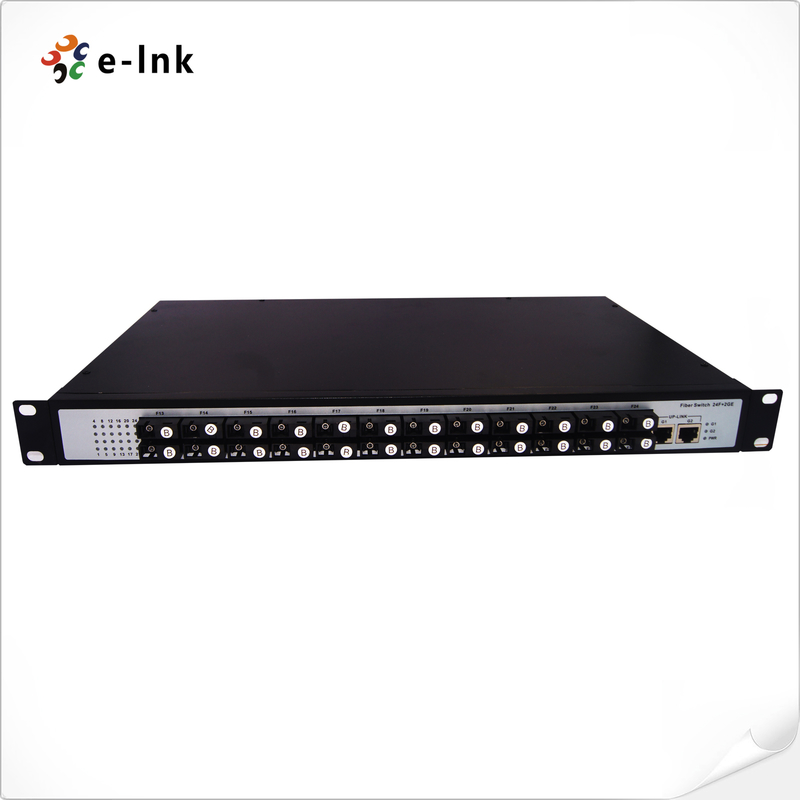

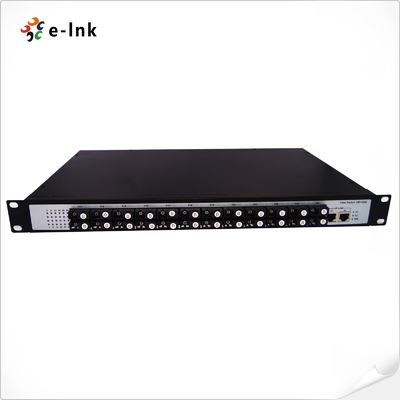

LNK-FS24SC02 Fiber Optic Switch 24 SC Ports 120km Distance Gigabit Uplink

Unmanaged 24-port 100Base-FX SC + 2-10/100/1000-TX Optical Fiber Switch

Unmanaged  24-Port SC Fiber Switch Overview

The LNK-FS24SC02 Series is a high-density, high-performance managed optical fibre switch designed

for robust, scalable network deployment. It features 24 100Base-FX SC fibre ports for extensive

connectivity of fibre optic links, as well as 2 Gigabit Ethernet ports for high-speed uplinks or aggregation.

Exceptionally flexible, it supports both single and dual fibre modes, offering a transmission range

of 2km to 120km and making it suitable for short- and long-haul applications. This switch operates

efficiently in both half-duplex and full-duplex modes to ensure reliable and adaptable data transmission.

It is the perfect future-proof solution for setting up fibre-to-the-home (FTTH) networks, metropolitan

area networks (MANs) and other challenging fibre optic infrastructure projects.

Unmanaged  24-Port SC Fiber Switch Features

►24x 100Base-FX SC Ports + 2x 10/100/1000Base-TX Ports for flexible fiber and copper connectivity

►Auto-negotiation support with 10/100/1000Mbps full/half-duplex and Auto MDI/MDI-X at TX ports

►Hot-swappable 100BASE-SC modules for easy maintenance and expansion

►2K MAC address capacity with 1Mbit frame buffer memory for stable data forwarding

►19-inch 1U rack-mount design, suitable for standard network cabinets

►Wide operating temperature range: -10°C to 60°C, ensuring reliable performance in diverse environments

►110~240VAC universal power input for flexible deployment

►Durable aluminum housing with lightning protection design for enhanced safety and longevity

 Unmanaged  24-Port SC Fiber Switch Technical Indexes

Unmanaged  24-Port SC Fiber Switch Ordering Information

After-Sales and Warranty Policy

It is composed of online customer service and telephone customer service, providing product consultation,

remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure

by technicians and man-made damage caused by non-natural disasters, the purchaser can directly

go to the purchasing point to replace the same type of products.Or a product of comparable performance.

If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.

[The following circumstances do not fall within the scope of replacement and free maintenance]

1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
