E-لينك الصين التكنولوجيا المحدودة.
|
تفاصيل المنتج:
شروط الدفع والشحن:
|
| موصل: | 3 منافذ RJ45 | منفذ بصري: | 1 × SFP 1000Base-X أو 100Base-FX (الكشف التلقائي) |
|---|---|---|---|
| مدخل الطاقة: | 12 ~ 48VDC ، كتلة طرفية 2 دبوس | الأبعاد (WxDxH): | 95 × 70 × 30 ملم |
| الوزن: | 0.25 كجم | الغلاف: | حالة الألومنيوم |
| إبراز: | 1000T Gigabit Ethernet Switch,3 Port Gigabit Ethernet Switch,SFP Gigabit Ethernet Switch,3 Port Gigabit Ethernet Switch,SFP Gigabit Ethernet Switch |
||

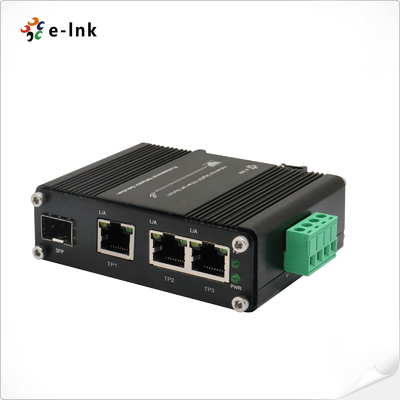

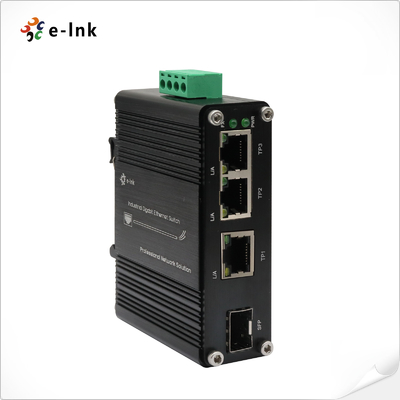

Overview
The LNK-IMC103G-SFP Series is an industrial-grade Gigabit Ethernet switch designed for robust
performance in harsh environments. It features three 10/100/1000BASE-T copper ports and one
100/1000BASE-X SFP fiber slot, offering flexible connectivity for both copper and fiber networks.
Packaged in a compact, IP40-rated rugged housing, this switch operates reliably in extreme
temperatures from -40°C to +75°C, making it ideal for industrial applications.
Supporting both half-duplex and full-duplex modes, the switch ensures efficient data transmission.
The SFP slot accommodates various fiber modules (single-mode/multi-mode, 1/2 core), enabling
long-distance or high-bandwidth connections as needed. With its plug-and-play simplicity and durable
design, the LNK-IMC103G-SFP is an excellent solution for integrating IP cameras, wireless access
points, and other network devices across remote or challenging environments.
Features
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► 12~48VDC Terminal Block Power Input
► IP40 Aluminum Case

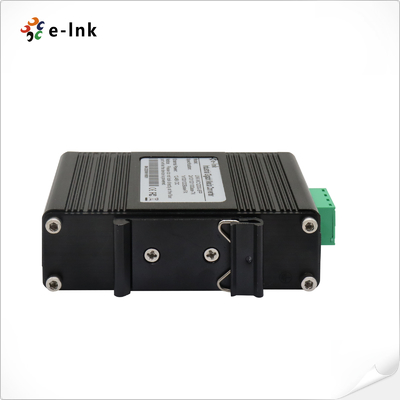

► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating temperature
► 3-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
► Supports Full/Half-duplex, Auto-negotiation

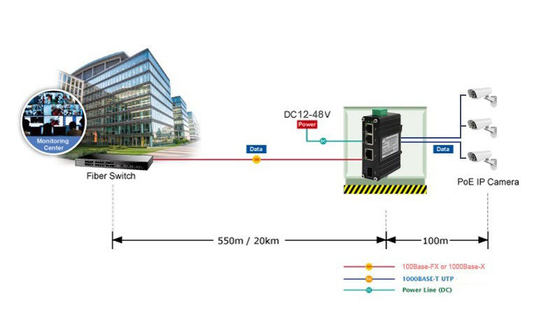

Application
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX | |
| IEEE802.3ab 1000Base-T | |
| IEEE802.3z 1000Base-X | |
| IEEE 802.3x Full-Duplex Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| Processing Type: | Store-and-Forward |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 4 Mbit |
| Switch Fabric: | 12Gbps |
| Max Packet Length: | 9K Bytes |
| Address Table Size | 2K MAC Addresses |
| Interface | |
| Connector: | 3 x RJ45 |
| Optical Port: | 1 x SFP 1000Base-X or 100Base-FX (auto detection) |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC, 2-pin terminal block |
| Power Consumption: | 5W Max. |
| LED Indicators: | |
| PWR: | Power Status |
| L/A: | Ethernet LINK Status |
| FX: | Fiber LINK Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Environmental | |
| Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Regulatory Approvals | |
| ISO9001, CE, FCC, RoHS | |
|
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 |
|
|
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
|
Ordering Information
| Model | Description |
| LNK-IMC103G-SFP | Mini Industrial 3-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
