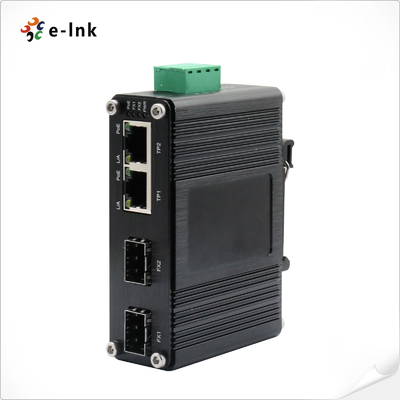

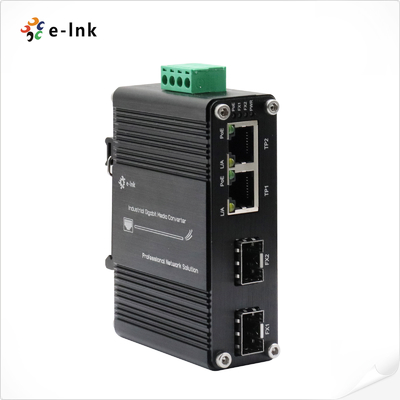

Mini Industrial 2-Port 802.3at PoE + 2-Port SFP Ethernet Switch with 12~48VDC Power Booster Function

Mini Industrial 2-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000Base-X SFP Ethernet Switch with 12~48VDC Power Booster Function

Overview
The LNK-IMC202GP-SFP Series is a DIN rail-mounted, industrial-grade PoE switch that delivers
IEEE 802.3at (30W) high-power PoE to connected devices, making it ideal for powering IP cameras,
wireless access points, and other PoE-enabled equipment. With two 10/100/1000BASE-T copper ports
(supporting half/full-duplex mode) and one 100/1000BASE-X SFP slot, it provides flexible connectivity
for both copper and fiber networks.
Built for harsh environments, this hardened switch operates in a wide temperature range of -40°C to +75°C
and complies with EN55022 EMI standards, ensuring reliable performance in industrial settings. The SFP
slot supports various fiber modules (single-mode/multi-mode, 1/2 core), enabling long-distance or
high-bandwidth deployments.
Thanks to its rugged DIN rail design, plug-and-play simplicity, and high-power PoE support, the
LNK-IMC202GP-SFP is a robust solution for industrial automation, surveillance, and outdoor networking
applications.
Features

► Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+ (30W)

► Supports Link Fault Pass Through

► Supports Full/Half-duplex, Auto-negotiation

► 9K Bytes Jumbo Frame

► Power booster function with wide range 12~48VDC Power Input

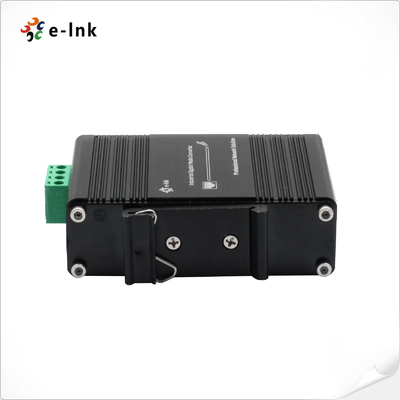

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 80°C(-40°F to 176°F) operating temperature

► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 2 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
Application





















Technical Indexes






























































Ordering Information
