E-لينك الصين التكنولوجيا المحدودة.
|
تفاصيل المنتج:
شروط الدفع والشحن:
|
| الموصل: | 8 X RJ45 | استهلاك الطاقة: | 8w كحد أقصى (بو في استخدام <240W) |
|---|---|---|---|
| قوة الإدخال: | 12 ~ 48VDC ، قوة زائدة (كتلة طرفية 6 أسنان) | الواجهة المادية: | الصناعية القياسية 3 دبوس محطة المسمار |
| نوع البيانات: | 1CH RS485 ثنائية الاتجاه | الأبعاد (WXDXH): | 149 × 114 × 50 مم |
| وزن: | 0.55 كجم |
Industrial L2+ 8-Port 10/100/1000T + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch
Industrial Managed 8-Port Ethernet Switch Overview

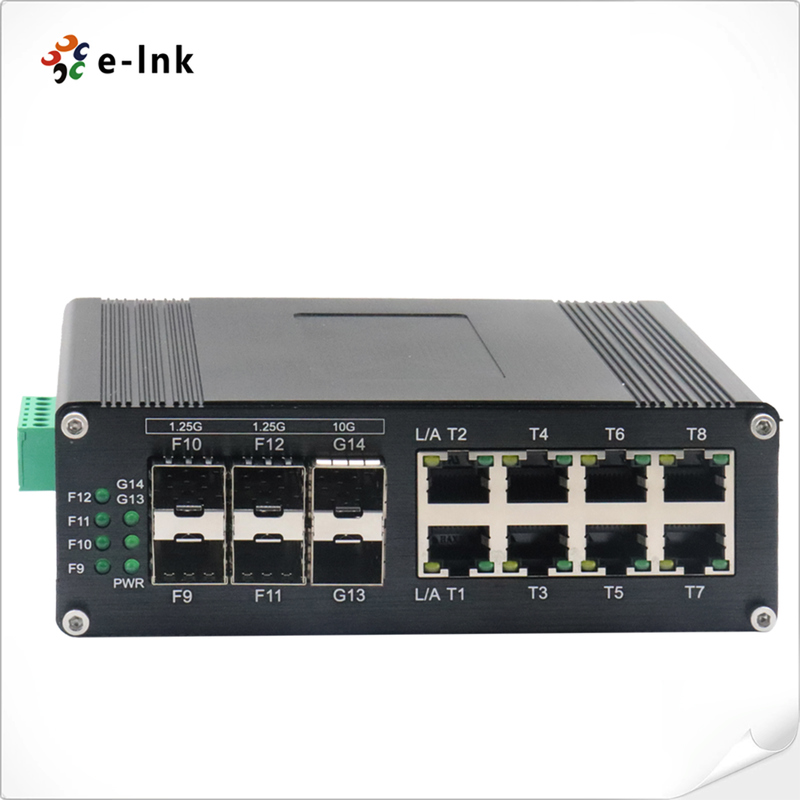

The ETH-IMC2408M Series is a ruggedized managed Ethernet switch featuring 8× 10/100/1000Base-T copper ports, 4× 1000Base-X SFP fiber slots, and 2× 10G SFP+ fiber slots.
It supports flexible connectivity with auto-negotiating RJ45 ports and dual-rate fiber interfaces for both single-mode and multi-mode transceivers.
Designed for harsh environments, this switch reliably integrates diverse network equipment—such as IP cameras and wireless access points—across distributed sites, offering robust performance and simplified management.
Industrial Managed 8-Port Ethernet Switch Features
Industrial Managed 8-Port Ethernet Switch Technical Indexes
|
Ethernet |
||||
|
Standards: |
IEEE802.3 10BASE-T |
|||
|
IEEE802.3u 100BASE-TX/FX |
||||
|
IEEE802.3ab 1000BASE-T |
||||
|
IEEE802.3z 1000BASE-X |
||||
|
IEEE802.3ae 10GBase-R |
||||
|
IEEE802.3p QoS |
||||
|
IEEE802.1d Spanning Tree |
||||
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|||
|
148,800pps (100Mbps) |
||||
|
1,488,000pps (1000Mbps) |
||||
|
1,488,000,000pps (10000Mbps) |
||||
|
Packet Buffer Memory: |
12M bits |
|||
|
Processing Type: |
Store-and-Forward |
|||
|
Backplane bandwidth |
110Gbps |
|||
|
Max Packet Length: |
9K Bytes Jumbo Frame |
|||
|
Address Table Size: |
8K MAC Addresses |
|||
|
Interface |
||||
|
Connector: |
8 x RJ45 |
|||
|
RS485: |
1 x RS485 (Optional) |
|||
|
Optical Port: |
4 x 1000Base-X SFP 2 x 10G Base-SR/LR SFP+ |
|||
|
USB-C: |
1 x USB-C (for Management) |
|||
|
RS485 Serial Interface (Optional) |
||||
|
Physical interface |
Industrial standard 3-pin screw terminal |
|||
|
Data type |
1Ch RS485 Bi-Direction |
|||
|
RS-485 signals |
Data+, Data-, GND |
|||
|
Serial port line distance (copper) |
1000 meters |
|||
|
Baud rate |
0 ~ 800kbps |
|||
|
Environmental |
||||
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|||
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|||
|
Relative Humidity: |
5% to 95% non-condensing |
|||
|
MTBF |
> 200,000 hrs |
|||
|
Electrical and Mechanical |
||||
|
Input Power: |
12~48VDC, Redundant Power (6-pin Terminal Block) |
|||
|
Power Consumption: |
8W Max.(PoE in Use<240W) |
|||
|
Protection: |
||||
|
Power Input Overload: |
Automatic Resettable |
|||
|
Reverse Polarity: |
Present |
|||
|
DIP Switch |
||||
|
4-digit DIP switch function
|
DIP |
Function |
Settings |
|
|
SW 1 |
VLAN |
ON - Enabled |
OFF - Disabled |
|
|
SW 2 |
Ring Management |
ON - Enabled |
OFF - Disabled |
|
|
SW 3 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
SW 4 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
LED Indicators: |
||||
|
PWR: |
Power Status |
|||
|
Ethernet (Per Port): |
Link/Activity |
|||
|
Fiber: |
Gigabit SFP Port: F9~F12 |
|||
|
10G SFP+ Port: F13, F14 |
||||
|
Dimensions (WxDxH): |
149 x 114 x 50 mm |
|||
|
Weight: |
0.55Kg |
|||
|
Casing: |
Aluminum Case |
|||
|
Mounting Options: |
DIN-Rail mount |
|||
|
Software Features |
||||
|
Redundancy Protocols |
Support STP/RSTP/MSTP/ERPSv2, Link Aggregation |
|||
|
Multicast Support |
Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q |
|||
|
VLAN |
Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN, |
|||
|
Time Management |
SNTP |
|||
|
QOS |
Flow-based redirection Flow-based rate limiting |
|||
|
ACL |
Port-based Issuing ACL ACL based on port and VLAN |
|||
|
Diagnostic Maintenance |
Support port mirroring, Syslog, Ping |
|||
|
Management Function |
Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTT |
|||
|
Alarm Management |
Support 1 way relay alarm output, RMON, TRAP |
|||
|
Security |
Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0 Support DHCP Snooping, Option 82,802.1X security access, |
|||
|
Advance Layer 2+ Features |
IPv4/IPv6 Management Static Route |
|||
|
Regulatory Approvals |
||||
|
ISO9001, CE, RoHS, FCC |
||||
|
EN55022:2010+AC: 2011, Class A |
||||
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
||||
|
EN 61000-3-3: 2013 |
||||
|
EN55024:2010 |
||||
|
IEC 61000-4-2: 2008 (ESD) |
||||
|
IEC 61000-4-3: 2010 (RS) |
||||
|
IEC 61000-4-4: 2012 (EFT) |
||||
|
IEC 61000-4-5: 2014 (Surge) |
||||
|
IEC 61000-4-6: 2013 (CS) |
||||
|
IEC 61000-4-8: 2009 (PFMF) |
||||
Industrial Managed 8-Port Ethernet Switch Ordering Information
|
Model |
Description |
|
ETH-IMC2408M |
Industrial L2+ 8-Port 10/100/1000T + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed |
|
Power Options |
► DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
Industrial Managed 8-Port Ethernet Switch Application
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure by technicians and man-made damage
caused by non-natural disasters, the purchaser can directly go to the purchasing point to replace the same type of products.
Or a product of comparable performance. If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
